MURB1620CT - 16A SURFACE MOUNT SUPER-FAST RECTIFIER

Name: MURB1620CT
SKU: MURB1620CT-489375

Diodes Incorporated

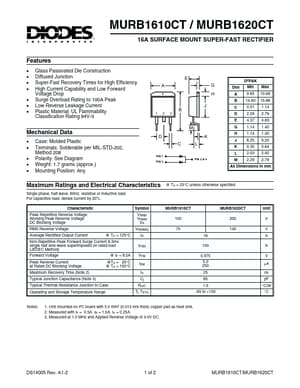

The MURB1620CT by Diodes Incorporated is a 16A SURFACE MOUNT SUPER-FAST RECTIFIER. Below is the official datasheet preview.

Datasheet Details

Part number	MURB1620CT
Manufacturer	DIODES Incorporated
File Size	64.25 KB
Description	16A SURFACE MOUNT SUPER-FAST RECTIFIER
Datasheet	MURB1620CT_DiodesIncorporated.pdf
Additional preview pages of the MURB1620CT datasheet.

Glass Passivated Die Construction Diffused Junction Super-Fast Recovery Times for High Efficiency High Current Capability and Low Forward Voltage Drop Surge Overload Rating to 100A Peak Low Reverse Leakage Current Plastic Material: UL Flammability Classification Rating 94V-0 E A 4 G H B D2PAK Dim A B C D E Min 9.65 14.60 0.51 2.29 4.37 1.14 1.14 8.25 0.30 2.03 2.29 Max 10.69 15.88 1.14 2.79 4.83 1.40 1.40 9.25 0.64 2.92 2.79 J 1 2 3 Mechanical Dat.
