SB240 - 2.0A SCHOTTKY BARRIER RECTIFIER

SB240 Description

SB240 - SB260 2.0A SCHOTTKY BARRIER RECTIFIER .

SB240 Features

* Schottky Barrier Chip Guard Ring Die Construction for Transient Protection Low Power Loss, High Efficiency High Surge Capability High Current Capability and Low Forward Voltage Drop Surge Overload Rating to 50A Peak For Use in Low Voltage, High Frequen

SB240 Applications

* Plastic Material - UL Flammability Classification 94V-0 ADVANCE INFORMATION A B A D C DO-41 Plastic Dim Min 25.40 4.06 0.71 2.00 Max ¾ 5.21 0.864 2.72 A B C D Mechanical Data
* Case: Molded Plastic Terminals: Plated Leads Solderable per MIL-STD-202, Method 2

📥 Download Datasheet

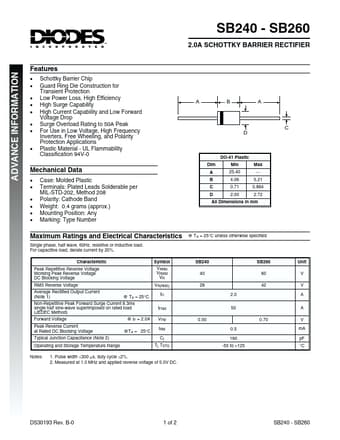

Preview of SB240 PDF
datasheet Preview Page 2
