SF12 - 1.0A SUPER-FAST RECOVERY RECTIFIER

Product Overview

Diodes Incorporated

📥 Download Datasheet

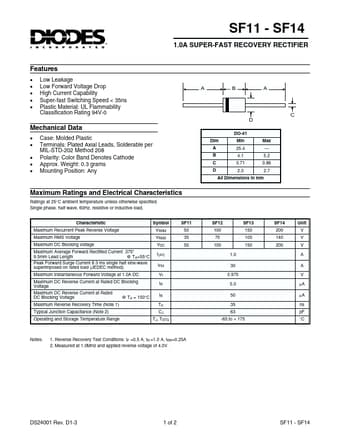

SF12 1.0A SUPER-FAST RECOVERY RECTIFIER by Diodes Incorporated - Datasheet Preview — Datasheet preview – SF12

Datasheet Details

Part number	SF12
Manufacturer	DIODES Incorporated
File Size	58.70 KB
Description	1.0A SUPER-FAST RECOVERY RECTIFIER
Datasheet	SF12 Datasheet
Additional preview pages of the SF12 datasheet.

Product details

Features

Low Leakage Low Forward Voltage Drop High Current Capability Super-fast Switching Speed < 35ns Plastic Material: UL Flammability Classification Rating 94V-0 A B A D C Mechanical Data.
DO-41 Case: Molded Plastic Terminals: Plated Axial Leads, Solderable per MIL-STD-202 Method 208 Polarity: Color Band Denotes Cathode Approx. Weight: 0.3 grams Mounting Position: Any Dim A B C D Min 25.4 4.1 0.71 2.0 Max.
5.2 0.86 2.7 All.
