SF1207D Datasheet - RF Monolithics

SF1207D SAW Filter

Preliminary SF1207D Low-loss RF SAW Duplexer Surface-mount 3.8 x 3.8 x 1.4 mm Package Complies with Directive 2002/95/EC (RoHS) Absolute Maximum Ratings Rating CW Input Power Level, 50,000 hours, +50 °C DC Voltage Operating Temperature Range Storage Temperature Range in Tape and Reel Pb Value 1.2 0 -30 to +85 -40 to +85 836.5/881.5 MHz SAW Duplexer Units W V °C °C Electrical Characteristics, Transmitter to Antenna Characteristic Center Frequency Insertion Loss, 8.

SF1207D Datasheet (854.89 KB)

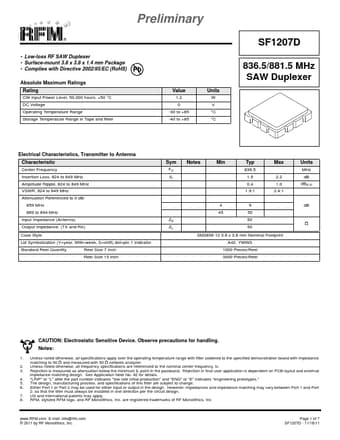

Preview of SF1207D PDF

Datasheet Details

Part number:

SF1207D

Manufacturer:

RF Monolithics

File Size:

854.89 KB

Description:

Saw filter.
