74HC125S14 Datasheet, Buffers, Diodes

74HC125S14 Features

  • Buffers
  • Wide Supply Voltage Range from 2.0V to 6.0V
  • Sinks or sources 4mA at VCC = 4.5V
  • CMOS low power consumption
  • Schmitt Trigger Action at All Inputs

PDF File Details

Part number:

74HC125S14

Manufacturer:

DIODES ↗

File Size:

300.31kb

Download:

📄 Datasheet

Description:

Quadruple 3-state buffers. The 74HC125 provides provides four independent buffer gates with 3-state outputs. Each buffer has a separate enable pin that if drive

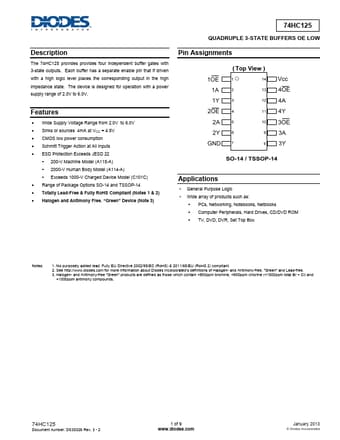

Datasheet Preview: 74HC125S14 📥 Download PDF (300.31kb)
Page 2 of 74HC125S14 Page 3 of 74HC125S14

74HC125S14 Application

  • Applications
  • General Purpose Logic
  • Wide array of products such as:
  • PCs, Networking, Notebooks, Netbooks
  • Comp
