AP3401

1A STEP-DOWN DC - DC BUCK CONVERTER

Diodes

AP3401 Features

* include over-temperature and short circuit protection, and under-voltage lockout to prevent deep battery discharge. The AP3401 delivers 1A maximum output current while consuming only 40μA of no-load quiescent current. Ultra-low RDS(ON) integrated MOSFETs and 100% duty cycle operation make the AP3401

AP3401 General Description

The AP3401 is a 1A step-down DC-DC converter. At heavy load, the constant-frequency PWM control performs excellent stability and transient response. No external compensation components are required. Pin Assignments (Top View) Pin 1 Mark The AP3401 supports a range of input voltages from 2.5V to 5..

AP3401 Datasheet (865.40 KB)

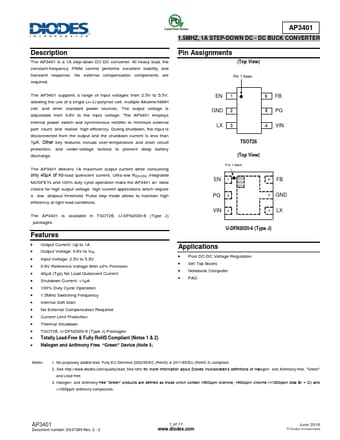

AP3401 Datasheet Preview — Preview of AP3401 PDF

Datasheet Details

Part number:

AP3401

Manufacturer:

DIODES ↗

File Size:

865.40 KB

Description:

1a step-down dc - dc buck converter.
