AP3403

600mA STEP-DOWN DC/DC CONVERTER

Diodes

AP3403 Features

* High Efficiency Buck Power Converter

* Input Voltage Range: 2.3V to 5.5V

* Output Voltage Range: 0.7V to 5.5V

* Fixed 2.0MHz Oscillator Frequency

* Built-in Soft-start Time

* Built-in Over Current Protection

* Built-in Thermal Shutdown Function

* Built-in UVLO Funct

AP3403 General Description

The AP3403 is a 2.0MHz fixed frequency, current mode, PWM synchronous buck (step-down) DC-DC converter, capable of driving a 600mA load with high efficiency, excellent line and load regulation. The high efficiency is easily configured by using an inductor, resistors and capacitors as the external co.

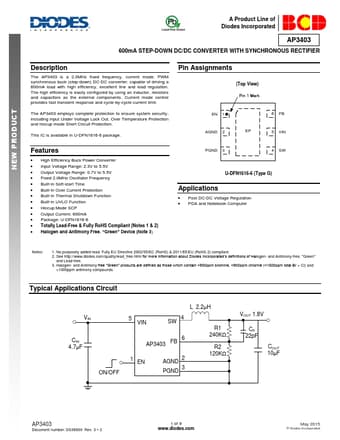

AP3403 Datasheet (540.58 KB)

AP3403 Datasheet Preview — Preview of AP3403 PDF

Datasheet Details

Part number:

AP3403

Manufacturer:

DIODES ↗

File Size:

540.58 KB

Description:

600ma step-down dc/dc converter.
