AP4305 - CONSTANT VOLTAGE AND CONSTANT CURRENT CONTROLLER

Description

The AP4305 is a highly integrated solution for a constant voltage/constant current mode SMPS application.

The AP4305 contains one 1.21V voltage reference with0.5% accuracy, one current sensing circuit and two operational amplifiers.

Features

  • Constant Voltage and Constant Current Control.
  • Precision Internal Voltage Reference.
  • Few External Components.
  • Easy Compensation.
  • Low Supply Current: 0.5mA.
  • Operating Temperature Range: -40 to +105oC.

📥 Download Datasheet

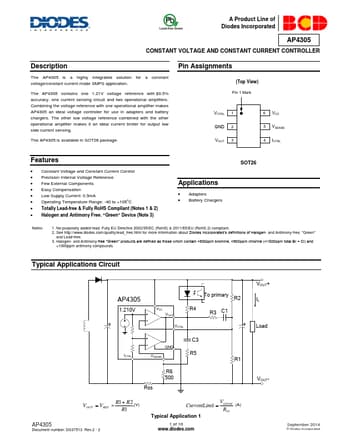

Datasheet preview – AP4305

Datasheet Details

Part number AP4305
Manufacturer DIODES
File Size 404.28 KB
Description CONSTANT VOLTAGE AND CONSTANT CURRENT CONTROLLER
Datasheet download datasheet AP4305 Datasheet
Additional preview pages of the AP4305 datasheet.

📁 Similar Datasheet

  • AP4305 - CONSTANT VOLTAGE AND CONSTANT CURRENT CONTROLLER (BCD Semiconductor)
  • AP4300 - QUAD OP AMP AND VOLTAGE REFERENCE (BCD Semiconductor)
  • AP4301 - QUAD OP AMP AND VOLTAGE REFERENCE (BCD Semiconductor)
  • AP4302 - QUAD OP AMP AND VOLTAGE REFERENCE (BCD Semiconductor)
  • AP4303 - QUAD OP AMP AND VOLTAGE REFERENCE (BCD Semiconductor)
  • AP431 - ADJUSTABLE PRECISION SHUNT REGULATOR (Diodes Incorporated)
  • AP431 - Adjustable Precision Shunt Regulator (Anachip)
  • AP4310 - DUAL OP AMP AND VOLTAGE REFERENCE (BCD Semiconductor)
  • AP4312 - CONSTANT VOLTAGE AND CONSTANT CURRENT CONTROLLER (Diodes Incorporated)
  • AP4313 - CONSTANT VOLTAGE AND CONSTANT CURRENT CONTROLLER (BCD Semiconductor)
Other Datasheets by Diodes
  • AP4306 - CONSTANT VOLTAGE AND CONSTANT CURRENT CONTROLLER
  • AP4310A - DUAL OP AMP AND VOLTAGE REFERENCE
  • AP4310E - DUAL OP AMP AND VOLTAGE REFERENCE
  • AP4312Q - CONSTANT VOLTAGE AND CONSTANT CURRENT CONTROLLER
  • AP4313 - CONSTANT VOLTAGE AND CONSTANT CURRENT CONTROLLER
  • AP431I - LOW CATHODE CUREENT ADJUSTABLE PRECISION SHUNT REGULATOR
  • AP431S - LOW CATHODE CURRENT ADJUSTABLE PRECISION SHUNT REGULATOR
  • AP431SH - LOW CATHODE CURRENT ADJUSTABLE PRECISION SHUNT REGULATOR

Full PDF Text Transcription

Click to expand full text
A Product Line of Diodes Incorporated AP4305 CONSTANT VOLTAGE AND CONSTANT CURRENT CONTROLLER Description The AP4305 is a highly integrated solution for a constant voltage/constant current mode SMPS application. The AP4305 contains one 1.21V voltage reference with0.5% accuracy, one current sensing circuit and two operational amplifiers. Combining the voltage reference with one operational amplifier makes AP4305 an ideal voltage controller for use in adapters and battery chargers. The other low voltage reference combined with the other operational amplifier makes it an ideal current limiter for output low side current sensing. The AP4305 is available in SOT26 package.
