AP4306 - CONSTANT VOLTAGE AND CONSTANT CURRENT CONTROLLER

Description

The AP4306 is a highly integrated solution for a constant voltage/constant current mode SMPS application.

The AP4306 contains one 1.21V voltage reference, one low voltage reference used in current sensing circuit and two operational amplifiers.

Features

  • Constant Voltage and Constant Current Control.
  • Precision Internal Voltage Reference.
  • Low External Component Count.
  • Easy Compensation.
  • Low Supply Current: 0.5mA.
  • Current Control Loop Reference A Version: 70mV B Version: 100mV C Version: 150mV.
  • Operating Temperature Range: -40 to +105oC.
  • Operating Supply Voltage: 2.5V to 18V.
  • Totally Lead-free & Fully RoHS Compliant (Note1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).

📥 Download Datasheet

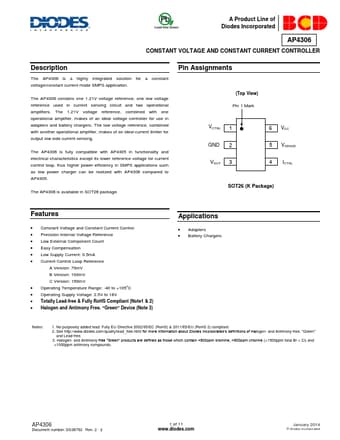

Datasheet preview – AP4306
