AS7805A

1A 3-TERMINAL POSITIVE VOLTAGE REGULATOR

AS7805A Features

* Output Current up to 1A

* Fixed Output Voltages of 5V, 6V, 8V, 9V, 12V, 15V, and 18V

* Output Voltage Accuracy of ±4% over the Full Temperature Range

* Internal Short-Circuit Current Limiting

* Internal Thermal Overload Protection

* Output Transistor Safe-area Protection

AS7805A General Description

The DIODES™ AS78XXA series are three-terminal positive voltage regulators designed for a wide variety of applications including local, on-card regulation. The AS78XXA are complete with internal current limiting, thermal shutdown protection, and safe-area compensation which make them virtually immune.

AS7805A Datasheet (1.14 MB)

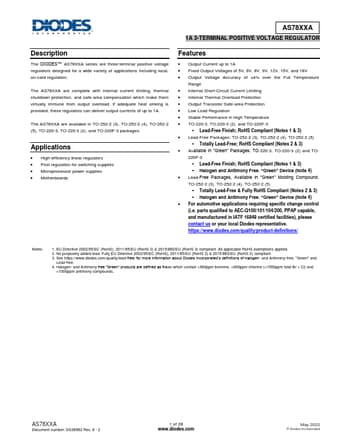

Preview of AS7805A PDF

Datasheet Details

Part number:

AS7805A

Manufacturer:

DIODES ↗

File Size:

1.14 MB

Description:

1a 3-terminal positive voltage regulator.
