AS7815A, AS7805A - 1A 3-TERMINAL POSITIVE VOLTAGE REGULATOR

Name: AS7815A
SKU: AS7815A-942580

Diodes

📥 Download Datasheet

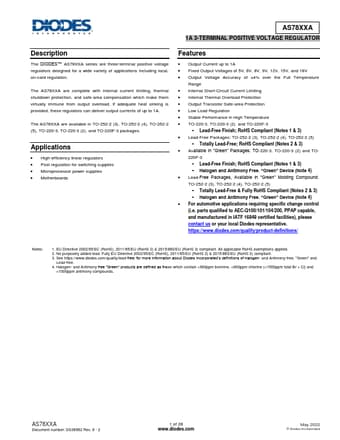

AS7815A Datasheet Preview — This datasheet PDF includes multiple part numbers: AS7815A, AS7805A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	AS7815A, AS7805A
Manufacturer	DIODES
File Size	1.14 MB
Description	1A 3-TERMINAL POSITIVE VOLTAGE REGULATOR
Datasheet	AS7805A-Diodes.pdf
Note	This datasheet PDF includes multiple part numbers: AS7815A, AS7805A. Please refer to the document for exact specifications by model.

AS7815A Product details

Description

The DIODES™ AS78XXA series are three-terminal positive voltage regulators designed for a wide variety of applications including local, on-card regulation.

Features

Output Current up to 1A.
Fixed Output Voltages of 5V, 6V, 8V, 9V, 12V, 15V, and 18V.
Output Voltage Accuracy of ±4% over the Full Temperature Range.
Internal Short-Circuit Current Limiting.
Internal Thermal Overload Protection.
Output Transistor Safe-area Protection.
Low Load Regulation.
Stable Performance in High Temperature.
TO-220-3, TO-220-3 (2) and TO-220F-3.
Lead-Free Finish; RoHS Compliant (Notes 1 & 3).
Lead-Free Packages: TO-252-2.
