AS78L05, AS78Lxx Datasheet - Diodes

AS78L05 100mA POSITIVE VOLTAGE REGULATOR

The AS78LXX series are three terminal positive regulators designed for a wide variety of applications including local, on-card regulation. This series of regulators are complete with internal current limiting, thermal shutdown protection, and safe-area compensation which make them virtually immune f.

AS78L05 Features

* Output Current up to 100mA

* Fixed Output Voltages of 5V, 12V and 15V

* Output Voltage Accuracy of ±5% over the Full Temperature Range

* Internal Short Circuit Current Limiting

* Internal Thermal Overload Protection

* No External Components

* Output Transistor Safe-Area

AS78Lxx_BCDSemiconductor.pdf

This datasheet PDF includes multiple part numbers: AS78L05, AS78Lxx. Please refer to the document for exact specifications by model.

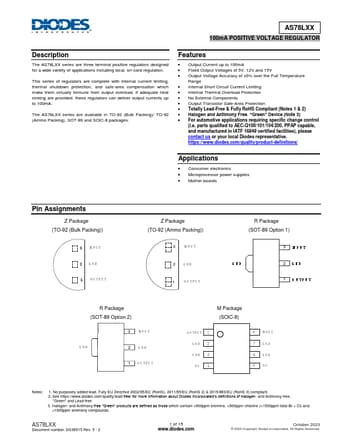

AS78L05 Datasheet Preview Page 2 AS78L05 Datasheet Preview Page 3
