BAS521LP - HIGH VOLTAGE SWITCHING DIODE

Datasheet Summary

Features

  • Fast Switching Speed: Maximum of 50ns.
  • High Reverse Breakdown Voltage: 325V.
  • Low Leakage Current: Maximum of 50nA when VR = 5V or Maximum of 150nA when VR = 250V at Room Temperature.
  • Ultra Small Plastic SMD Package: 1.0mm x 0.6mm x 0.5mm.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. "Green" Device (Note 3) Mechanical Data.
  • Case: X1-DFN1006-2.
  • Case Material: Molded Plastic, “Green” Mold.

📥 Download Datasheet

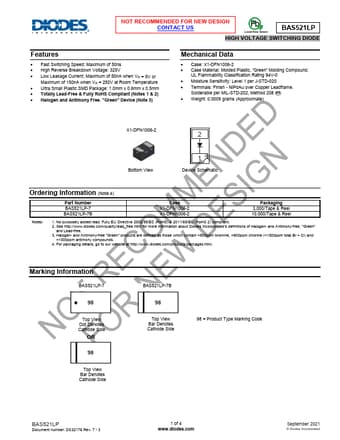

Datasheet preview – BAS521LP

Datasheet Details

Part number BAS521LP
Manufacturer DIODES
File Size 301.78 KB
Description HIGH VOLTAGE SWITCHING DIODE
