BAS516 - High-speed switching diodes

NXP

📥 Download Datasheet

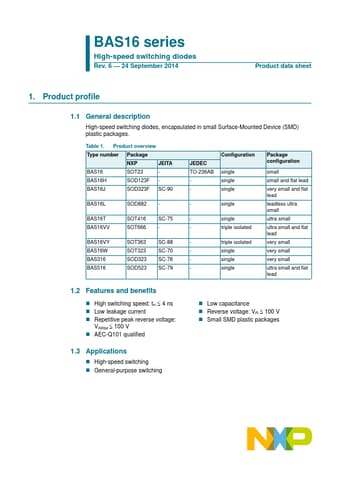

BAS516 Datasheet Preview — Preview of BAS516 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BAS516
Manufacturer	NXP ↗
File Size	203.78 KB
Description	High-speed switching diodes
Datasheet	BAS516_PhilipsSemiconductors.pdf

BAS516 Product details

Description

High-speed switching diodes, encapsulated in small Surface-Mounted Device (SMD) plastic packages.

Features

High switching speed: trr  4 ns.
Low leakage current.
Repetitive peak reverse voltage: VRRM  100 V.
AEC-Q101 qualified.
Low ca.
