BAS516S Surface Mount Switching Diode

BAS516S Description

BAS516S Elektronische Bauelemente RoHS Compliant Product Surface Mount Switching Diode .

BAS516S Features

* High speed switching High reliabilty . . . . . A suffix of "-C" specifies halogen & lead-free SOD-523 CATHODE MARK MECHANICAL DATA Extremely small surface mounting type. (EMD2) High speed. (trr=4ns type. ) Silicon epitaxial planer 1.2±0.05 1.6±0.1 0.3±0.05 0.12±0.05 Marking: 61 0.8±0.05 0.6±0

📥 Download Datasheet

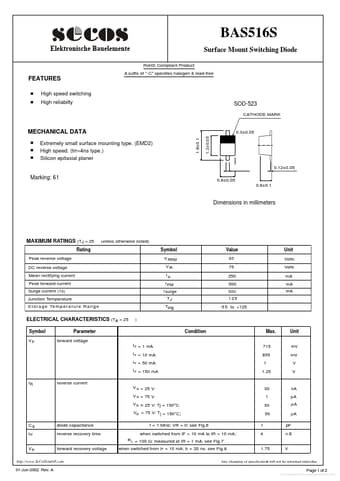

Preview of BAS516S PDF
datasheet Preview Page 2

Datasheet Details

Part number
BAS516S
Manufacturer
SeCoS
File Size
145.84 KB
Datasheet
BAS516S_SeCoS.pdf
Description
Surface Mount Switching Diode
