BAV16S92 - SURFACE MOUNT FAST SWITCHING DIODE

Datasheet Summary

Description

The BAV16S92 is a 75V, 1.0µA and 4ns switching diode that is optimized for fast switching speed.

Mobile Portable Electronics Consumer Electronics BAV16S92 SURFACE MOUNT FAST SWITCHING DIODE Featur

Features

  • Fast Switching Speed.
  • Ultra-Small Surface Mount Package (1.0 x 0.6 x 0.37mm).
  • Flat-Lead, Thermally-Efficient Package Design.
  • Exposed, Easily Visible Terminals, No X-ray Inspection of Solder Joints Required (As for DFN Packages).
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3) Mechanical Data.
  • Case: SOD923.
  • Case Material: Molded Plastic, "Green" Molding Compound. UL Flammability Classification Rati.

📥 Download Datasheet

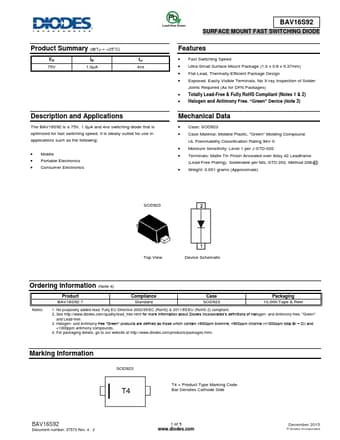

Datasheet preview – BAV16S92
