BCR401UW6Q - 10mA to 100mA LED CONSTANT CURRENT REGULATOR

Datasheet Summary

Description

This Linear LED driver is designed to meet the stringent requirements of automotive applications.

The BCR401UW6Q monolithically integrates a transistor, diodes, and resistors to function as a Constant Current Regulator (CCR) for LED driving.

Features

  • LED Constant Current Regulator Using PNP Emitter-Follower with Emitter Resistor to Current Limit.
  • IOUT = 10mA ± 10% Constant Current (Preset).
  • IOUT up to 100mA Adjustable with An External Resistor.
  • VS.
  • 40V Supply Voltage.
  • PD up to 1W in SOT26.
  • LED Dimming Using PWM up to 25kHz.
  • Negative Temperature Coefficient (NTC) Reduces IOUT with Increasing Temperature.
  • Parallel Devices to Increase Regulated Current.
  • Totally Lead-Free & Fully RoHS Compli.

📥 Download Datasheet

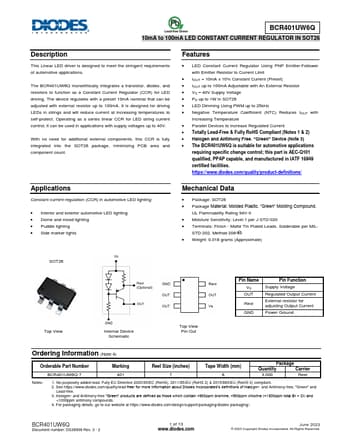

Datasheet preview – BCR401UW6Q

Datasheet Details

Part number BCR401UW6Q
Manufacturer DIODES
File Size 1.09 MB
Description 10mA to 100mA LED CONSTANT CURRENT REGULATOR
Datasheet download datasheet BCR401UW6Q Datasheet
Additional preview pages of the BCR401UW6Q datasheet.

📁 Similar Datasheet

  • BCR401U - LED Driver (Infineon Technologies)
  • BCR401UE6327 - LED Driver (Infineon)
  • BCR401R - LED Driver (Infineon)
  • BCR401W - LED Driver (Infineon Technologies)
  • BCR400R - Active Bias Controller (Siemens Semiconductor Group)
  • BCR400R - Active Bias Controller (Infineon Technologies AG)
  • BCR400W - Active Bias Controller (Siemens Semiconductor Group)
  • BCR400W - Active Bias Controller (Infineon Technologies AG)
  • BCR402R - LED Driver (Infineon Technologies AG)
  • BCR402U - LED Driver (Infineon Technologies AG)
Other Datasheets by Diodes
  • BCR401UW6 - 10 to 100mA LED CONSTANT CURRENT REGULATOR
  • BCR402UW6 - 20 to 100mA LED CONSTANT CURRENT REGULATOR
  • BCR402UW6Q - 20 TO 100mA LED CONSTANT CURRENT REGULATOR
  • BCR405UW6 - 50 to 100mA LED CONSTANT CURRENT REGULATOR
  • BCR405UW6Q - 50 to 100mA LED CONSTANT CURRENT REGULATOR
  • BCR420UFD - LINEAR LED CONSTANT CURRENT REGULATOR
  • BCR420UFDQ - LINEAR LED CONSTANT CURRENT REGULATOR
  • BCR420UW6 - LINEAR LED CONSTANT CURRENT REGULATOR

Full PDF Text Transcription

Click to expand full text
BCR401UW6Q 10mA to 100mA LED CONSTANT CURRENT REGULATOR IN SOT26 Description This Linear LED driver is designed to meet the stringent requirements of automotive applications. The BCR401UW6Q monolithically integrates a transistor, diodes, and resistors to function as a Constant Current Regulator (CCR) for LED driving. The device regulates with a preset 10mA nominal that can be adjusted with external resistor up to 100mA. It is designed for driving LEDs in strings and will reduce current at increasing temperatures to self-protect. Operating as a series linear CCR for LED string current control, it can be used in applications with supply voltages up to 40V.
