BCR420UFD - LINEAR LED CONSTANT CURRENT REGULATOR

Diodes

📥 Download Datasheet

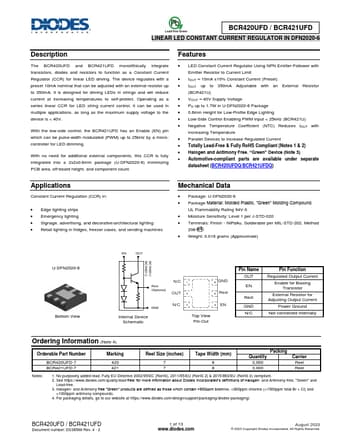

BCR420UFD Datasheet Preview — Preview of BCR420UFD PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: BCR420UFD
Manufacturer: DIODES ↗
File Size: 1.01 MB
Datasheet: BCR420UFD-Diodes.pdf
Description: LINEAR LED CONSTANT CURRENT REGULATOR

BCR420UFD Product details

Description

The BCR420UFD and BCR421UFD monolithically integrate transistors, diodes and resistors to function as a Constant Current Regulator (CCR) for linear LED driving.

Features

LED Constant Current Regulator Using NPN Emitter-Follower with Emitter Resistor to Current Limit.
IOUT.
10mA ±10% Constant Current (Preset).
IOUT up to 350mA Adjustable with an External Resistor (BCR421U).
VOUT.
40V Supply Voltage.
PD up to 1.7W in U-DFN2020-6 Package.
0.6mm Height for Low-Profile Edge Lighting.
Low-Side Control Enabling PWM Input < 25kHz (BCR421U).
Negative Temperature Coefficient (NTC) Reduces IOUT with Increasing Temp.
