BCR420UW6 - LINEAR LED CONSTANT CURRENT REGULATOR

Datasheet Summary

Description

The BCR420UW6 and BCR421UW6 monolithically integrate transistors, diodes, and resistors to function as a Constant Current Regulator (CCR) for linear LED driving.

Each device regulates with a preset 10mA nominal that can be adjusted with an external resistor up to 350mA.

Features

LED Constant Current Regulator using NPN Emitter-Follower with Emitter Resistor to Current Limit.
IOUT.
10mA ± 10% Constant Current (Preset).
IOUT up to 350mA Adjustable with an External Resistor (BCR421U).
VOUT.
40V Supply Voltage.
PD up to 1W in SOT26.
Low-Side Control Enabling PWM Input < 25kHz (BCR421U).
Negative Temperature Coefficient (NTC) Reduces IOUT with Increasing Temperature.
Parallel Devices to Increase Regulated Current.

Datasheet Details

Part number	BCR420UW6
Manufacturer	DIODES
File Size	1.00 MB
Description	LINEAR LED CONSTANT CURRENT REGULATOR
Datasheet	BCR420UW6 Datasheet

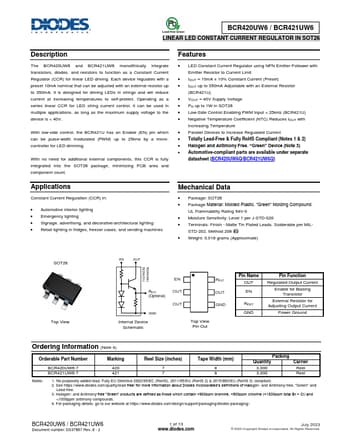

Additional preview pages of the BCR420UW6 datasheet.

📁 Similar Datasheet

BCR420U - LED Driver (Infineon)

BCR420UE6327 - LED Driver (Infineon Technologies)

BCR421U - LED Driver (Infineon)

BCR421UE6327 - LED Driver (Infineon Technologies)

BCR42PN - NPN/PNP Silicon Digital Transistor (Infineon Technologies AG)

BCR400R - Active Bias Controller (Siemens Semiconductor Group)

BCR400R - Active Bias Controller (Infineon Technologies AG)

BCR400W - Active Bias Controller (Siemens Semiconductor Group)

BCR400W - Active Bias Controller (Infineon Technologies AG)

BCR401R - LED Driver (Infineon)

Full PDF Text Transcription

Click to expand full text

BCR420UW6 / BCR421UW6 LINEAR LED CONSTANT CURRENT REGULATOR IN SOT26 Description The BCR420UW6 and BCR421UW6 monolithically integrate transistors, diodes, and resistors to function as a Constant Current Regulator (CCR) for linear LED driving. Each device regulates with a preset 10mA nominal that can be adjusted with an external resistor up to 350mA. It is designed for driving LEDs in strings and will reduce current at increasing temperatures to self-protect. Operating as a series linear CCR for LED string current control, it can be used in multiple applications, as long as the maximum supply voltage to the device is < 40V. With low-side control, the BCR421U has an Enable (EN) pin which can be pulse-width modulated (PWM) up to 25kHz by a microcontroller for LED dimming.
