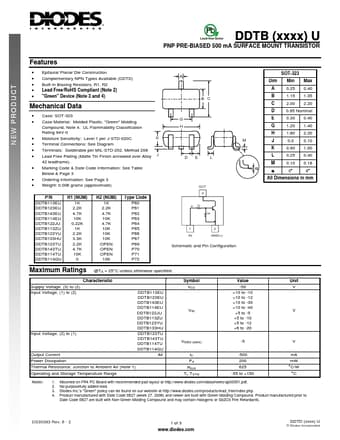

DDTB113ZU, DDTB114GU - PNP PRE-BIASED 500 mA SURFACE MOUNT TRANSISTOR

Diodes

Datasheet Details

Part number: DDTB113ZU, DDTB114GU
Manufacturer: DIODES ↗
File Size: 68.31 KB
Datasheet: DDTB114GU-Diodes.pdf
Description: PNP PRE-BIASED 500 mA SURFACE MOUNT TRANSISTOR
Note: This datasheet PDF includes multiple part numbers: DDTB113ZU, DDTB114GU.
Please refer to the document for exact specifications by model.

Epitaxial Planar Die Construction.
Complementary NPN Types Available (DDTD).
Built-In Biasing Resistors, R1, R2.
Lead Free/RoHS Compliant (Note 2).
"Green" Device (Note 3 and 4) Mechanical Data.
Case: SOT-323.
Case Material: Molded Plastic, "Green" Molding Compound, Note 4. UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level 1 per J-STD-020C K.
Terminal Connections: See Diagram.
