DDTB142TC, DDTB122LC - PNP 500mA TRANSISTOR

Name: DDTB142TC
SKU: DDTB142TC-1428009

Diodes

The DDTB142TC by Diodes is a PNP 500mA TRANSISTOR. Below is the official datasheet preview.

Datasheet Details

Part number	DDTB142TC, DDTB122LC
Manufacturer	DIODES
File Size	194.60 KB
Description	PNP 500mA TRANSISTOR
Datasheet	DDTB122LC-Diodes.pdf
Note	This datasheet PDF includes multiple part numbers: DDTB142TC, DDTB122LC. Please refer to the document for exact specifications by model.

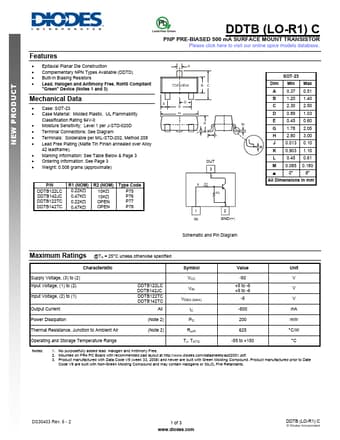

Additional preview pages of the DDTB142TC datasheet.

Epitaxial Planar Die Construction.
Complementary NPN Types Available (DDTD).
Built-In Biasing Resistors.
Lead, Halogen and Antimony Free, RoHS Compliant "Green" Device (Notes 1 and 3) Mechanical Data.
Case: SOT-23.
Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level 1 per J-STD-020D.
Terminal Connections: See Diagram.
Terminals: Solderable per MIL-STD-202, Method.
