DDTC123TCA, DDTC113TCA NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR

DDTC123TCA Description

DDTC(R1-ONLY SERIES) CA NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR  .

DDTC123TCA Features

* Mechanical Data
* Epitaxial Planar Die Construction
* Complementary PNP Types Available (DDTA)
* Built-In Biasing Resistors, R1only
* Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
* Halogen and Antimony Free "Green" Device (Note 3)
* Qualified to AEC-Q101 Standard

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DDTC123TCA, DDTC113TCA. Please refer to the document for exact specifications by model.

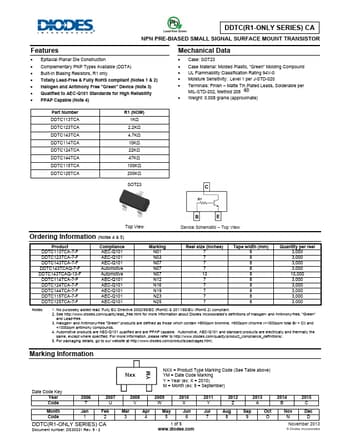

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DDTC123TCA, DDTC113TCA
Manufacturer
DIODES ↗
File Size
242.79 KB
Datasheet
DDTC113TCA-Diodes.pdf
Description
NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Note
This datasheet PDF includes multiple part numbers: DDTC123TCA, DDTC113TCA.
Please refer to the document for exact specifications by model.
