DDTC124XKA, DDTC113ZKA NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR

DDTC124XKA Description

OBSOLETE DDTC (R1R2 SERIES) KA NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR Obsolete Part Number DDTC113ZKA DDTC114WKA DDTC114YKA DDTC123JK.

DDTC124XKA Features

* Epitaxial Planar Die Construction
* Complementary PNP Types Available (DDTA)
* Built-In Biasing Resistors, R1R2
* Lead Free/RoHS Compliant (Note 1)
* "Green" Device, Note 2 and 3 Mechanical Data
* Case: SC-59
* Case Material: Molded Plastic, "Green" Molding Compound, N

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DDTC124XKA, DDTC113ZKA. Please refer to the document for exact specifications by model.

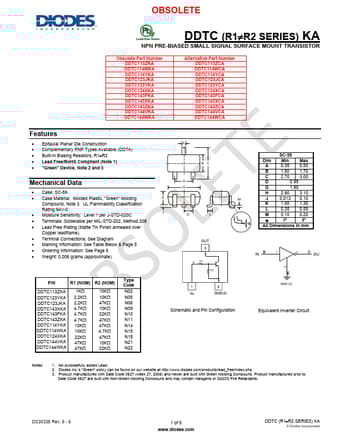

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DDTC124XKA, DDTC113ZKA
Manufacturer
DIODES ↗
File Size
199.78 KB
Datasheet
DDTC113ZKA-Diodes.pdf
Description
NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Note
This datasheet PDF includes multiple part numbers: DDTC124XKA, DDTC113ZKA.
Please refer to the document for exact specifications by model.
