DESDALC5LP Datasheet - Diodes

1 CHANNEL BIDIRECTIONAL TVS DIODE

DESDALC5LP Features

* Low Profile Package (0.53mm max) and Ultra-small PCB Footprint Area (1.08

* 0.68mm max) Suitable for Compact Portable Electronics

* Provides ESD Protection per IEC 61000-4-2 Standard: Air ±30kV, Contact ±30kV

* 1 Channel of ESD Protection

* Low Channel Input Cap

DESDALC5LP General Description

This new generation TVS is designed to protect sensitive electronics from the damage due to ESD. The combination of small size and high ESD surge capability makes it ideal for use in portable applications such as cellular phones, digital cameras, and MP3 players. Applications * Cellular Han.

DESDALC5LP Datasheet (383.72 KB)

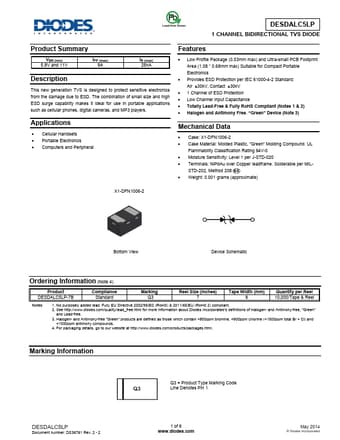

DESDALC5LP Datasheet Preview — Preview of DESDALC5LP PDF

Datasheet Details

Part number:

DESDALC5LP

Manufacturer:

DIODES ↗

File Size:

383.72 KB

Description:

1 channel bidirectional tvs diode.
ADVANACDEVDAINNCFEO IRNMFAOTIROMNATION DESDALC5LP 1 CHANNEL BIDIRECTIONAL TVS DIODE Product Summary VBR (min) 5.8V and 11V IPP (max) 9A IR (max) .
