DF1502S, DF15005S 1.5A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER

DF1502S Description

Green DF15005S * DF1510S 1.5A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER .

DF1502S Features

* Glass Passivated Die Construction
* Low Forward Voltage Drop, High Current Capability
* Surge Overload Rating to 50A Peak

DF1502S Applications

* UL Listed Under Recognized Component Index, File Number E94661
* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3) Mechanical Data
* Case: DF-S
* Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DF1502S, DF15005S. Please refer to the document for exact specifications by model.

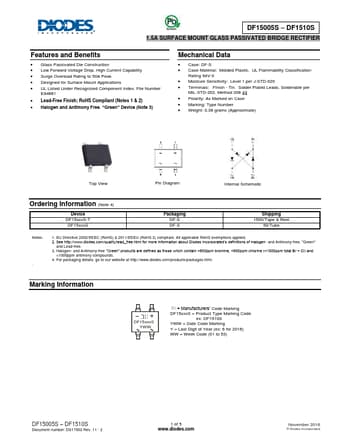

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DF1502S, DF15005S
Manufacturer
DIODES ↗
File Size
290.67 KB
Datasheet
DF15005S-Diodes.pdf
Description
1.5A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: DF1502S, DF15005S.
Please refer to the document for exact specifications by model.
