DF1504M, DF15005M 1.5A GLASS PASSIVATED BRIDGE RECTIFIERS

DF1504M Description

NOT RECOMMENDED FOR NEW DESIGN DF15005M - DF1510M 1.5A GLASS PASSIVATED BRIDGE RECTIFIERS .

DF1504M Features

* Glass Passivated Die Construction
* Low Forward Voltage Drop, High Current Capability
* Surge Overload Rating to 50A Peak

DF1504M Applications

* UL Listed Under Recognized Component Index, File Number E94661
* Lead Free Finish, RoHS Compliant (Date Code 0532+) (Note 3) Mechanical Data
* Case: DF-M
* Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
* Moisture Sensitivity: Le

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DF1504M, DF15005M. Please refer to the document for exact specifications by model.

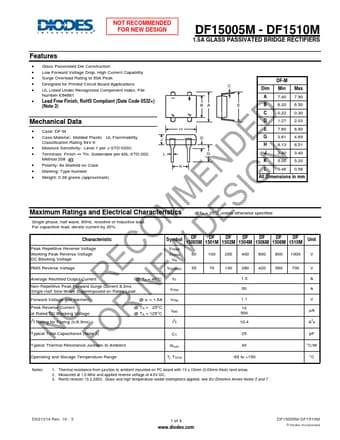

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DF1504M, DF15005M
Manufacturer
DIODES ↗
File Size
89.64 KB
Datasheet
DF15005M-Diodes.pdf
Description
1.5A GLASS PASSIVATED BRIDGE RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: DF1504M, DF15005M.
Please refer to the document for exact specifications by model.
