DGD0215 Datasheet, Driver, Diodes

DGD0215 Features

• Driver The DGD0215 and DGD0216 high speed / low side MOSFET and IGBT drivers are capable of driving 1.9A of peak current. The DGD0215 and DGD0216 logic inputs are compatible with standard TTL

PDF File Details

Part number:

DGD0215

Manufacturer:

DIODES ↗

File Size:

624.93kb

Download:

📄 Datasheet

Description:

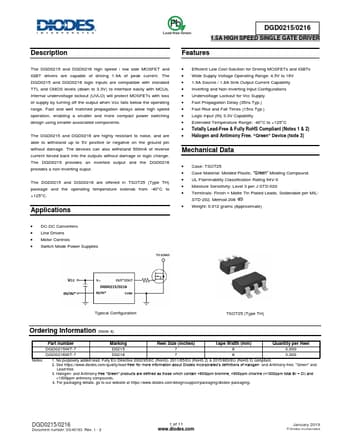

High speed single gate driver. DGD0215/0216 1.5A HIGH SPEED SINGLE GATE DRIVER Features The DGD0215 and DGD0216 high speed / low side MOSFET and IGBT drivers are

DGD0215 Application

• Applications
• Efficient Low Cost Solution for Driving MOSFETs and IGBTs
• Wide Supply Voltage Operating Range: 4.5V to 18V
