DGD0280 Datasheet, Driver, Diodes

DGD0280 Features

  • Driver
  • Efficient Low Cost Solution for Driving MOSFETs and IGBTs
  • Integrated LDO (3.3V, 15mA Output)
  • 3.3V LDO at 1% Accuracy at +25°C
  • Wide Supply Voltage

PDF File Details

Part number:

DGD0280

Manufacturer:

DIODES ↗

File Size:

748.11kb

Download:

📄 Datasheet

Description:

Low side single gate driver. The DIODESTM DGD0280 low-side MOSFET and IGBT driver is capable of driving 2.8A of peak current. The DGD0280 logic inputs are compati

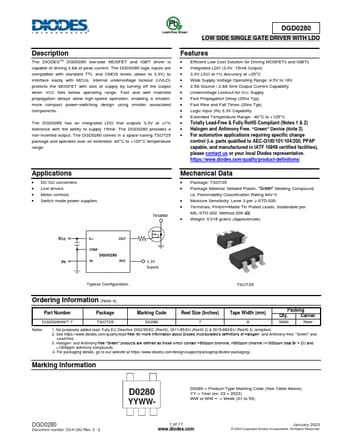

Datasheet Preview: DGD0280 📥 Download PDF (748.11kb)
Page 2 of DGD0280 Page 3 of DGD0280

DGD0280 Application

  • Applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified
