DGD0590A Datasheet - Diodes

DGD0590A HIGH FREQUENCY HIGH-SIDE AND LOW-SIDE GATE DRIVER

The DGD0590A is a high-frequency high-side and low-side gate driver capable of driving N-channel MOSFETs in a half-bridge configuration. The floating high-side driver is rated up to 40V and the provides a 5V gate drive to the MOSFETs. The DGD0590A logic inputs are compatible with standard TTL and CM.

DGD0590A Features

* 40V Floating High-Side Driver

* Low VCC Operating Voltage: 4.5V to 5.5V

* Drives Two N-channel Logic Level MOSFETs in a Half-Bridge Configuration

* High-Side 1.0A Source / 1.0A Sink and Low-S

DGD0590A-Diodes.pdf

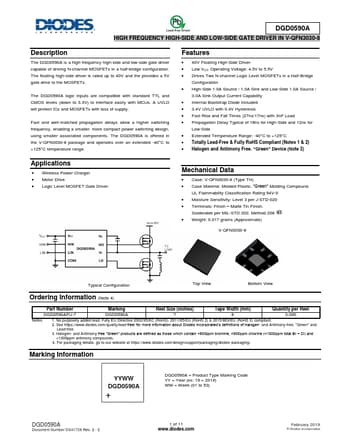

Preview of DGD0590A PDF
DGD0590A Datasheet Preview Page 2 DGD0590A Datasheet Preview Page 3

Datasheet Details

Part number:

DGD0590A

Manufacturer:

DIODES ↗

File Size:

775.53 KB

Description:

High frequency high-side and low-side gate driver.
