DGD21032 Datasheet, Driver, Diodes

DGD21032 Features

• Driver high pulse current buffers designed for minimum driver cross conduction. DGD21032 has a fixed internal deadtime of 430ns (typical). The DGD21032 is offered in the SO-8 (Type TH) package

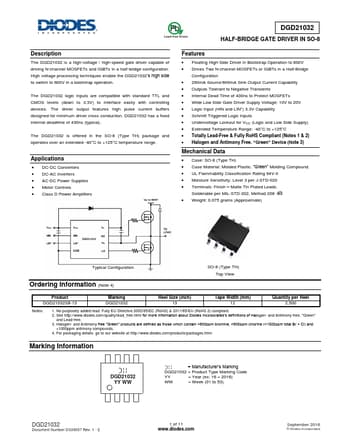

PDF File Details

Part number:

DGD21032

Manufacturer:

DIODES ↗

File Size:

882.87kb

Download:

📄 Datasheet

Description:

Half-bridge gate driver. The DGD21032 is a high-voltage / high-speed gate driver capable of driving N-channel MOSFETs and IGBTs in a half-bridge configuration

DGD21032 Application

• Applications
• DC-DC Converters
• DC-AC Inverters
• AC-DC Power Supplies
• Motor Controls
• Class D Power Am
