DGD2104A - HALF-BRIDGE GATE DRIVER

Diodes

📥 Download Datasheet

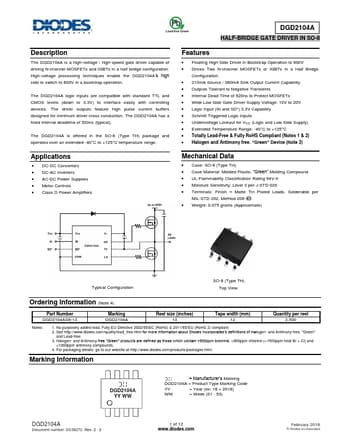

DGD2104A Datasheet Preview — Preview of DGD2104A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DGD2104A
Manufacturer	DIODES
File Size	686.48 KB
Description	HALF-BRIDGE GATE DRIVER
Datasheet	DGD2104A-Diodes.pdf

DGD2104A Product details

Description

The DGD2104A is a high-voltage / high-speed gate driver capable of driving N-channel MOSFETs and IGBTs in a half bridge configuration.

Features

Floating High-Side Driver in Bootstrap Operation to 600V.
Drives Two N-channel MOSFETs or IGBTs in a Half Bridge Configuration.
210mA Source / 360mA Sink Output Current Capability.
Outputs Tolerant to Negative Transients.
Internal Dead Time of 520ns to Protect MOSFETs.
Wide Low Side Gate Driver Supply Voltage: 10V to 20V.
Logic Input (IN and SD.
) 3.3V Capability.
Schmitt Triggered Logic Inputs.
Undervoltage Lockout for VCC (Logic and Low Side Sup.
