DGD2104M Datasheet - Diodes

DGD2104M HALF-BRIDGE GATE DRIVER

The DGD2104M is a high-voltage / high-speed gate driver capable of driving N-channel MOSFETs and IGBTs in a half bridge configuration. High-voltage processing techniques enable the DGD2104M’s high side to switch to 600V in a bootstrap operation. The DGD2104M logic inputs are compatible with standard.

DGD2104M Features

* Floating High-Side Driver in Bootstrap Operation to 600V

* Drives Two N-Channel MOSFETs or IGBTs in a Half Bridge Configuration

* 290mA Source / 600mA Sink Output Current Capability

* Designed fo

DGD2104M-Diodes.pdf

Preview of DGD2104M PDF

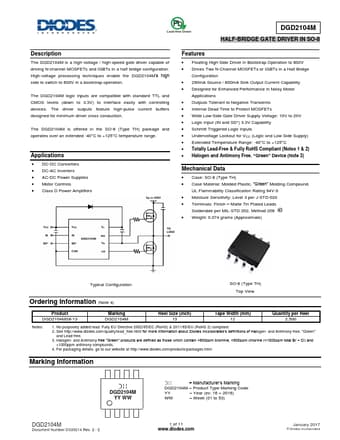

DGD2104M Datasheet Preview Page 2 DGD2104M Datasheet Preview Page 3

Datasheet Details

Part number:

DGD2104M

Manufacturer:

DIODES ↗

File Size:

921.31 KB

Description:

Half-bridge gate driver.
