DGD2108 Datasheet, Driver, Diodes

DGD2108 Features

  • Driver
  • Floating high-side driver in bootstrap operation to 600V
  • Drives two N-Channel MOSFETs or IGBTs in a half bridge configuation
  • Outputs tolerant to negative t

PDF File Details

Part number:

DGD2108

Manufacturer:

DIODES ↗

File Size:

702.19kb

Download:

📄 Datasheet

Description:

Half-bridge gate driver. The DGD2108 is a high-voltage / high-speed gate driver capable of driving N-Channel MOSFETs and IGBTs in a half bridge configuration.

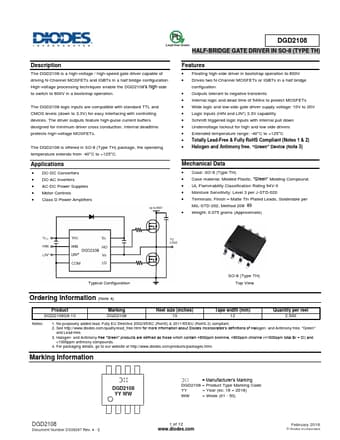

Datasheet Preview: DGD2108 📥 Download PDF (702.19kb)
Page 2 of DGD2108 Page 3 of DGD2108

DGD2108 Application

  • Applications
  • DC-DC Converters
  • DC-AC Inverters
  • AC-DC Power Supplies
  • Motor Controls
  • Class D Power Am
