DGD2118, DGD2117 - SINGLE CHANNEL GATE DRIVER

Diodes

📥 Download Datasheet

DGD2118 Datasheet Preview — This datasheet PDF includes multiple part numbers: DGD2118, DGD2117. Please refer to the document for exact specifications by model.

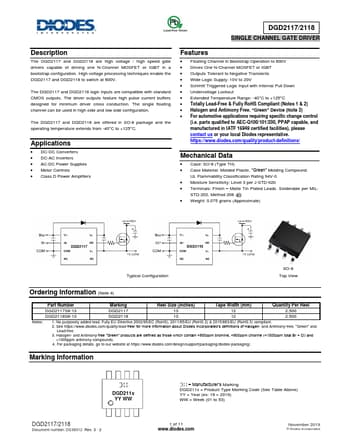

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DGD2118, DGD2117
Manufacturer	DIODES
File Size	644.56 KB
Description	SINGLE CHANNEL GATE DRIVER
Datasheet	DGD2117-Diodes.pdf
Note	This datasheet PDF includes multiple part numbers: DGD2118, DGD2117. Please refer to the document for exact specifications by model.

DGD2118 Product details

Description

The DGD2117 and DGD2118 are high voltage / high speed gate drivers capable of driving one N-Channel MOSFET or IGBT in a bootstrap configuration.

Features

Floating Channel in Bootstrap Operation to 600V.
Drives One N-Channel MOSFET or IGBT.
Outputs Tolerant to Negative Transients.
Wide Logic Supply: 10V to 20V.
Schmitt Triggered Logic Input with Internal Pull Down.
Undervoltage Lockout.
Extended Temperature Range: -40°C to +125°C.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
For automotive.
