DGD2113, DGD2110 HIGH-SIDE AND LOW-SIDE GATE DRIVERS

DGD2113 Description

DGD2110/2113 HIGH-SIDE AND LOW-SIDE GATE DRIVERS IN SO-16 (TYPE TH) .
The DGD2110 and DGD2113 are high-voltage / high-speed MOSFET and IGBT drivers with independent high-side and low-side outputs.

DGD2113 Features

* floating supply for operation at up to 500V/600V. The 10ns (max) / 20ns (max) propagation delay matching between the high and the low side drivers allows high-frequency operation. The DGD2110 and DGD2113 logic inputs are compatible with standard CMOS levels (as low as 3.3V) while driver outputs feat

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DGD2113, DGD2110. Please refer to the document for exact specifications by model.

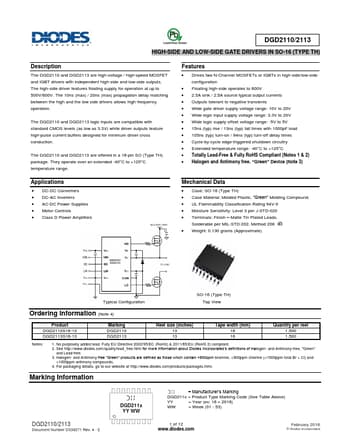

datasheet Preview Page 2 datasheet Preview Page 3
