DMB54D0UV - N-Channel MOSFET

Features

  • N-Channel MOSFET and PNP Transistor in One Package.
  • Low On-Resistance.
  • Very Low Gate Threshold Voltage, 1.0V max.
  • Low Input Capacitance.
  • Fast Switching Speed.
  • Low Input/Output Leakage.
  • Ultra-Small Surface Mount Package.
  • ESD Protected MOSFET Gate up to 2kV.
  • Lead, Halogen and Antimony Free, RoHS Compliant (Note 1).
  • "Green" Device (Note 2).
  • Qualified to AEC-Q101 Standards for High Reliability Mechan.

📥 Download Datasheet

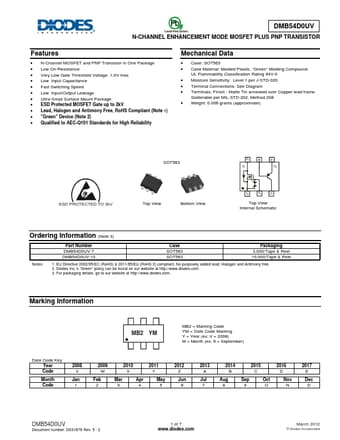

Datasheet preview – DMB54D0UV

Datasheet Details

Part number DMB54D0UV
Manufacturer Diodes Incorporated
File Size 112.62 KB
Description N-Channel MOSFET
Datasheet download datasheet DMB54D0UV Datasheet
Additional preview pages of the DMB54D0UV datasheet.

📁 Similar Datasheet

  • DMB51CM24 - (DMB51 Series) Timers Multifunction (Carlo Gavazzi)
  • DMB - ELECTRIC DOUBLE LAYER CAPACITORS (Rubycon)
  • DMB01 - Timers Multifunction (Carlo Gavazzi)
  • DMB01CM24 - Timers Multifunction (Carlo Gavazzi)
  • DMBT1015 - PNP Transistor (Dc Components)
  • DMBT1815 - PNP Transistor (Dc Components)
  • DMBT2222 - PNP Transistor (Dc Components)
  • DMBT2222A - PNP Transistor (Dc Components)
  • DMBT2369 - PNP Transistor (Dc Components)
  • DMBT2907 - PNP Transistor (Dc Components)
Other Datasheets by Diodes
  • DMB54D0UDW - N-Channel MOSFET
  • DMB53D0UDW - N-CHANNEL ENHANCEMENT MODE MOSFET PLUS NPN TRANSISTOR
  • DMB53D0UV - N-CHANNEL ENHANCEMENT MODE MOSFET PLUS NPN TRANSISTOR
  • DMB2227A - COMPLEMENTARY NPN / PNP SMALL SIGNAL SURFACE MOUNT TRANSISTOR

Full PDF Text Transcription

Click to expand full text
DMB54D0UV N-CHANNEL ENHANCEMENT MODE MOSFET PLUS PNP TRANSISTOR Features • N-Channel MOSFET and PNP Transistor in One Package • Low On-Resistance • Very Low Gate Threshold Voltage, 1.0V max • Low Input Capacitance • Fast Switching Speed • Low Input/Output Leakage • Ultra-Small Surface Mount Package • ESD Protected MOSFET Gate up to 2kV • Lead, Halogen and Antimony Free, RoHS Compliant (Note 1) • "Green" Device (Note 2) • Qualified to AEC-Q101 Standards for High Reliability Mechanical Data • Case: SOT563 • Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 • Moisture Sensitivity: Level 1 per J-STD-020 • Terminal Connections: See Diagram • Terminals: Finish - Matte Tin annealed over Copper lead frame.
