* Low On-Resistance
* Low Input Capacitance
* Fast Switching Speed
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)
* Qualified to AEC-Q101 Standards for High Reliability Mechanical Data

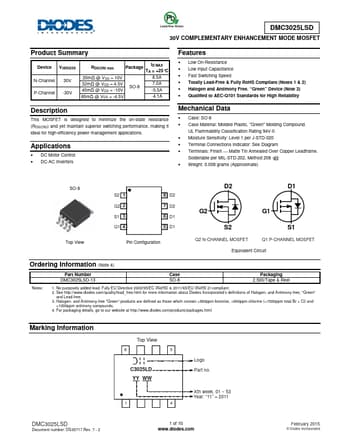

DMC3025LSD Datasheet (340.00 KB)
DMC3025LSD
340.00 KB
30v mosfet.
ADVANCED INFORMATION
DMC3025LSD
30V COMPLEMENTARY ENHANCEMENT MODE MOSFET
Product Summary
Device V(BR)DSS N-Channel 30V P-Channel -30V
RDS(ON) max.
