* Low On-Resistance
* Low Input Capacitance
* Fast Switching Speed
* Low Input/Output Leakage
* ESD Protected Gate
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)
* Qualified to AEC-Q101 Standards for High
DMC3730UVT Datasheet (489.53 KB)
DMC3730UVT
489.53 KB
Mosfet.
ADVANCE INFORMATION YM

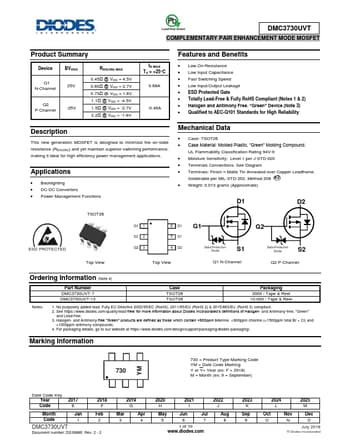

DMC3730UVT
COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET
Product Summary
Device
BVDSS
Q1
N-Channel
25V
Q2 P-Channel
-25V
.
