DMC3016LNS Datasheet, Mosfet, Diodes

DMC3016LNS Features

  • Mosfet Device BVDSS Q1 30V Q2 -30V RDS(ON) max 16mΩ @ VGS = 10V 20mΩ @ VGS = 4.5V 28mΩ @ VGS = -10V 38mΩ @ VGS = -4.5V ID max TA = +25°C 9.0A 8.0A -6.8A -5.8A
  • Low On-Resistance <

PDF File Details

Part number:

DMC3016LNS

Manufacturer:

DIODES ↗

File Size:

371.13kb

Download:

📄 Datasheet

Description:

Mosfet. This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance,

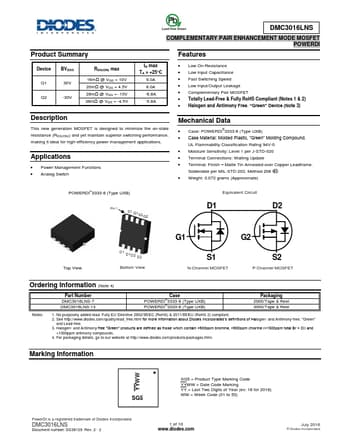

Datasheet Preview: DMC3016LNS 📥 Download PDF (371.13kb)
Page 2 of DMC3016LNS Page 3 of DMC3016LNS

DMC3016LNS Application

  • Applications Applications
  • Power Management Functions
  • Analog Switch Mechanical Data
  • Case: POWERDI®3333-8 (Type UXB) <
