DMC3016LDV, MOSFET

ADVANCED INFORMATION DMC3016LDV COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET PowerDI Product Summary Device V(BR)DSS Q1 30V Q2 -30V RDS(ON) Max 12mΩ.
This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)), yet maintain superior switching performance, making it ideal for.

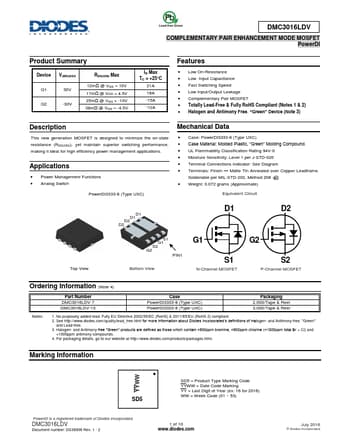

datasheet Preview Page 1 from Datasheet4u.com

DMC3016LDV-Diodes.pdf

DMC3016LDV Datasheet Preview — Preview of DMC3016LDV PDF

Datasheet Details

Part number:

DMC3016LDV

Manufacturer:

DIODES ↗

File Size:

569.03 KB

Description:

MOSFET

Features

* Low On-Resistance
* Low Input Capacitance
* Fast Switching Speed
* Low Input/Output Leakage
* Complementary Pair MOSFET
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Applications

* Applications
* Power Management Functions
* Analog Switch PowerDI3333-8 (Type UXC) Mechanical Data
* Case: PowerDI3333-8 (Type UXC)
* Case Material: Molded Plastic, “Green” Molding Compound.
* UL Flammability Classification Rating 94V-0
* Moisture
