DMC3730UFL3

MOSFET

DMC3730UFL3 Features

* Footprint of just 1.3 mm2

* Ultra Low Profile Package

* 0.35mm Profile

* Low Gate Threshold Voltage

* Fast Switching Speed

* Ultra-Small Surface Mount Package

* ESD Protected Gate

* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

* Halogen and Antimon

DMC3730UFL3 General Description

and Applications This MOSFET is designed to minimize the on-state resistance (RDS(ON)), yet maintain superior switching performance, making it ideal for high efficiency power management applications.
* Motor Control
* Power Management Functions
* Backlighting Mechanical Data
* Case:.

DMC3730UFL3 Datasheet (627.13 KB)

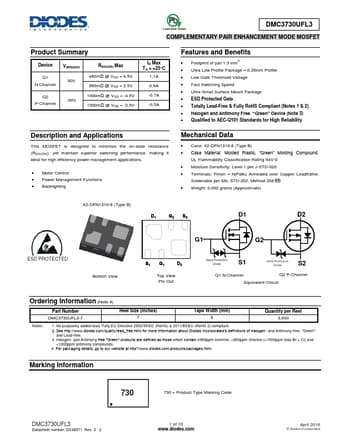

Preview of DMC3730UFL3 PDF

Datasheet Details

Part number:

DMC3730UFL3

Manufacturer:

DIODES ↗

File Size:

627.13 KB

Description:

Mosfet.
DMC3730UFL3 COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET Product Summary Device Q1 N-Channel Q2 P-Channel V(BR)DSS 30V -30V RDS(ON) Max 460mΩ @ VGS .
