DMN2022UFDF Datasheet - Diodes

N-Channel MOSFET

DMN2022UFDF Features

* 0.6mm Profile

* Ideal for Low Profile Applications

* PCB Footprint of 4mm2

* Low Gate Threshold Voltage

* Fast Switching Speed

* ESD Protected Gate

* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

* Halogen and Antimony Free. “Green” Device (Note 3)

DMN2022UFDF General Description

This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. Applications * Battery Management Application * Power Management Functions * DC-DC Converters D.

DMN2022UFDF Datasheet (454.09 KB)

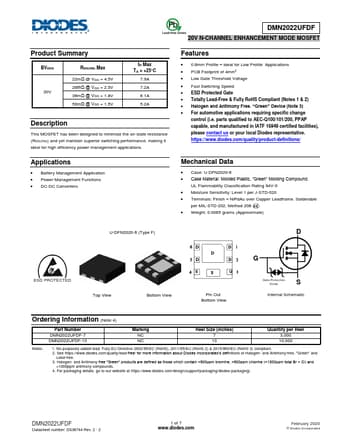

DMN2022UFDF Datasheet Preview — Preview of DMN2022UFDF PDF

Datasheet Details

Part number:

DMN2022UFDF

Manufacturer:

DIODES ↗

File Size:

454.09 KB

Description:

N-channel mosfet.
Product Summary BVDSS 20V RDS(ON) Max 22mΩ @ VGS = 4.5V 26mΩ @ VGS = 2.5V 36mΩ @ VGS = 1.8V 50mΩ @ VGS = 1.5V ID Max TA = +25°C 7.9A 7.2A 6.1A 5.2A.
