DMN2022UNS, DUAL N-CHANNEL MOSFET

NEW PRODUCT Product Summary V(BR)DSS 20V RDS(ON) max 10.8m @ VGS = 4.5V 14.5m @ VGS = 2.5V 17.0m @ VGS = 1.8V ID max TA = +25°C 10.7A 9.3A 8.6A.
This new generation MOSFET has been designed to minimize the onstate resistance (RDS(ON)) and yet maintain superior switching performance, making it i.

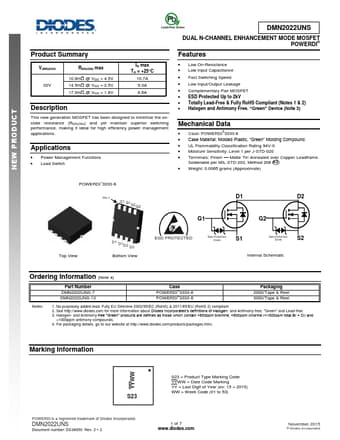

datasheet Preview Page 1 from Datasheet4u.com

DMN2022UNS-Diodes.pdf

DMN2022UNS Datasheet Preview — Preview of DMN2022UNS PDF

Datasheet Details

Part number:

DMN2022UNS

Manufacturer:

DIODES ↗

File Size:

325.25 KB

Description:

DUAL N-CHANNEL MOSFET

Features

* Low On-Resistance
* Low Input Capacitance
* Fast Switching Speed
* Low Input/Output Leakage
* Complementary Pair MOSFET
* ESD Protected Up to 2kV
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3) Mechanical

Applications

* Applications
* Power Management Functions
