* 0.6mm Profile
* Ideal for Low Profile Applications
* PCB Footprint of 4mm2
* Low Gate Threshold Voltage
* Fast Switching Speed
* ESD Protected Gate
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)

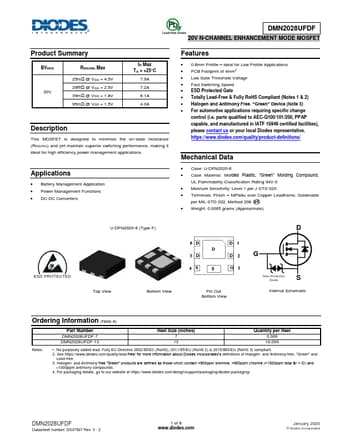

DMN2028UFDF Datasheet (384.82 KB)
DMN2028UFDF
384.82 KB
N-channel mosfet.
Product Summary
BVDSS 20V
RDS(ON) Max
25mΩ @ VGS = 4.5V 29mΩ @ VGS = 2.5V 39mΩ @ VGS = 1.8V 95mΩ @ VGS = 1.5V
ID Max TA = +25°C
7.9A 7.2A 6.1A 4.0A.
