* ID MAX TA = +25°C 0.9A 0.7A 0.5A 0.3A
* Low On-Resistance
* Very low Gate Threshold Voltage, 1.0V Max
* Low Input Capacitance
* Fast Switching Speed
* ESD Protected Gate
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device
DMN2400UFD Datasheet (429.29 KB)

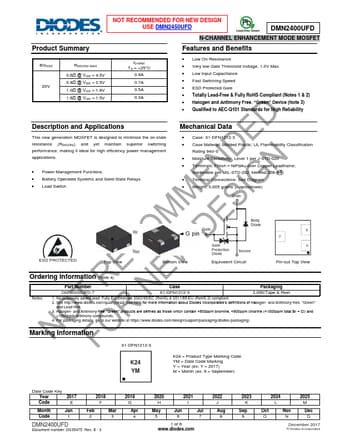

DMN2400UFD
429.29 KB
N-channel mosfet.
NEW PRODUCT
Product Summary
BVDSS 20V
RDS(ON) MAX
0.6Ω @ VGS = 4.5V 0.8Ω @ VGS = 2.5V 1.0Ω @ VGS = 1.8V 1.6Ω @ VGS = 1.5V
NOT RECOMMENDED FOR NEW .
