DMNH4005SPSQ - 40V N-CHANNEL MOSFET

Description

This MOSFET is designed to meet the stringent requirements of Automotive applications.

Engine Management Systems Body Control Electronics DC-DC Converters Rated to +175°C Idea

Features

  • BVDSS 40V RDS(ON) MAX 4.0mΩ @ VGS = 10V ID MAX TC = +25°C 80A.

📥 Download Datasheet

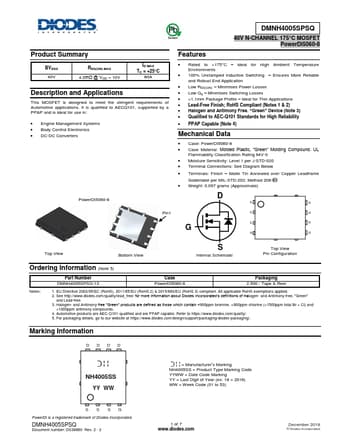

Datasheet preview – DMNH4005SPSQ

📁 Similar Datasheet

Other Datasheets by Diodes

Full PDF Text Transcription

Click to expand full text
DMNH4005SPSQ Green 40V N-CHANNEL 175°C MOSFET PowerDI5060-8 Product Summary Features BVDSS 40V RDS(ON) MAX 4.0mΩ @ VGS = 10V ID MAX TC = +25°C 80A Description and Applications This MOSFET is designed to meet the stringent requirements of Automotive applications. It is qualified to AECQ101, supported by a PPAP and is ideal for use in:  Engine Management Systems  Body Control Electronics  DC-DC Converters  Rated to +175°C – Ideal for High Ambient Temperature Environments  100% Unclamped Inductive Switching – Ensures More Reliable and Robust End Application  Low RDS(ON) – Minimises Power Losses  Low Qg – Minimises Switching Losses  <1.1mm Package Profile – Ideal for Thin Applications  Lead-Free Finish; RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free.
