* Low On-Resistance
* Low Input Capacitance
* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)
* Qualified to AEC-Q101 Standards for High Reliability
* An Automotive-Compliant Part is Available Under Separate Datasheet (DMNH4

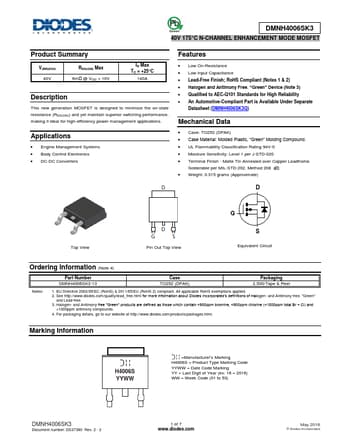

DMNH4006SK3 Datasheet (471.28 KB)
DMNH4006SK3
471.28 KB
N-channel mosfet.
ADVANCED INFORMATION
DMNH4006SK3
Green
40V 175°C N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V(BR)DSS 40V
RDS(ON) Max 6mΩ @ VGS = 10V
ID Ma.
