* Low Input Capacitance
* Low On-Resistance
* Fast Switching Speed
* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)
* Qualified to AEC-Q101 Standards for High Reliability Description This new genera

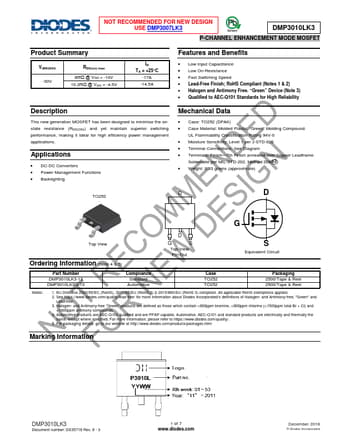

DMP3010LK3 Datasheet (357.54 KB)
DMP3010LK3
357.54 KB
P-channel mosfet.
NOT RECOMMENDED FOR NEW DESIGN
USE DMP3007LK3
Green
DMP3010LK3
P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V(BR)DSS -30V
RDS(on) max
8mΩ .
