* Thermally Efficient Package-Cooler Running Applications High Conversion Efficiency Low RDS(on)
* Minimizes On State Losses Low Input Capacitance Fast Switching Speed

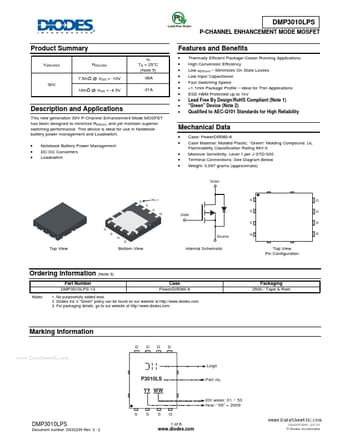

DMP3010LPS Datasheet (172.75 KB)
DMP3010LPS
DIODES ↗ Incorporated
172.75 KB
P-channel mosfet.
DMP3010LPS
P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V(BR)DSS RDS(ON) 7.5mΩ @ VGS = -10V 30V 10mΩ @ VGS = -4.5V -31A ID TA = 25°C (Note 5) -3.
