DP0150ALP4 50V PNP SMALL SIGNAL TRANSISTOR

DP0150ALP4 Description

NEW PRODUCT .

DP0150ALP4 Features

* BVCEO > -50V
* IC = -100mA High Collector Current
* PD = 1000mW Power Dissipation
* 0.60mm2 Package Footprint, 13 times Smaller than SOT23
* 0.4mm Height Package Minimizing Off-Board Profile
* Complementary NPN Type: DN0150ALP4 / DN0150BLP4
* Totally Lead-Free & Fully R

📥 Download Datasheet

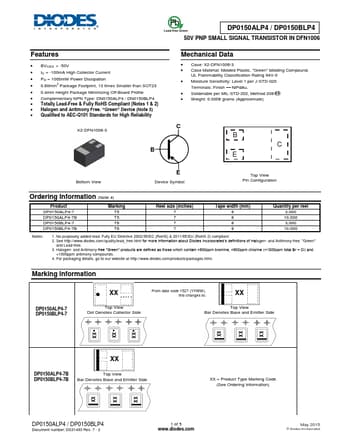

Preview of DP0150ALP4 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DP0150ALP4
Manufacturer
DIODES ↗
File Size
245.41 KB
Datasheet
DP0150ALP4-Diodes.pdf
Description
50V PNP SMALL SIGNAL TRANSISTOR
